Freeport (FRI.V) targets porphyry-style gold and copper along the prolific PNG Orogenic Belt, Papua New Guinea

When one thinks of Papua New Guinea, one might evoke images of deep impenetrable jungles, wild-eyed Crazy’s that want your head on a stick, and big-ass bugs that can kill your ass.

The fact is, Papua New Guinea is one of the most diverse countries on the planet, boasting over 850 different languages and roughly 1000 distinct cultures.

My mom would’ve appreciated this: Papuans were the world’s first agriculturalists.

Archaeologists discovered evidence of gardening that goes back 9,000 years.

The Country’s 460,000-plus square kilometers encompass over 600 small islands, including a portion of the island of New Guinea that shares a common border with Indonesia.

Capital city of Port Moresby

I’m a big believer that we, as a species, have tapped out much of our planet’s mineral wealth. Certainly, the lowest hanging fruit is gone. I believe we’ve reached peak golda peak in discovery and production.

Industry magnate Ian Telfer on the subject, two years back…

We’re right at peak gold’: All major deposits have been discovered, declares Goldcorp chairman

“Are we bad at finding it? Or have we found it all? My answer is we found it all.”

To further our quest for Tier-1 mineral depositslarge, long-life, robust orebodieswe need to scour territories we seldom dare tread, where the facilities of modern life do not exist.

Papua New Guinea is one of the least explored countries on the planet.

Freeport Resources (FRI.V)

  • 70.13 million shares outstanding
  • $17.18M market cap based on its recent $0.245 close

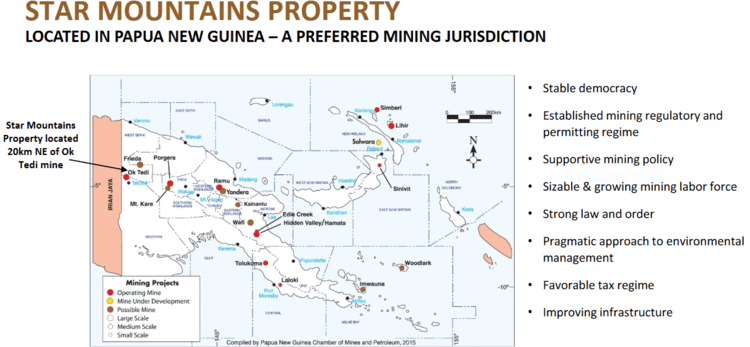

Freeport is setting its sights on a potentially large copper/gold porphyry projectits Star Mountains Projectin what is becoming an increasingly mining-friendly jurisdictionPapua New Guinea, or PNG for short.

The Star Mountains tenements consist of 501 square kilometers in four leases.

This region of the island nation merits the handle, Elephant Country.

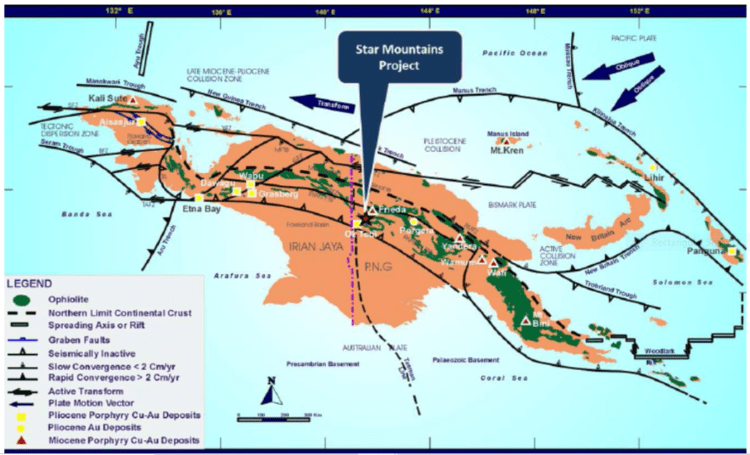

Star Mountains is located in the highly prospective PNG Orogenic Belt, only 25 kilometers from the colossal Ok Tedi Mine, and in the same geological arc as Grasberg, Frieda River, Porgera & Ramu.

On the subject of Grasberg, this deposit, operated by Freeport-McMoRan, has over 67 million ounces in gold reserves. I believe this ounce-count, spread out across three operating mines—the Grasberg open pit, the Deep Ore Zone underground mine, and the Big Gossan underground mine—represents the largest Au resource on the planet.

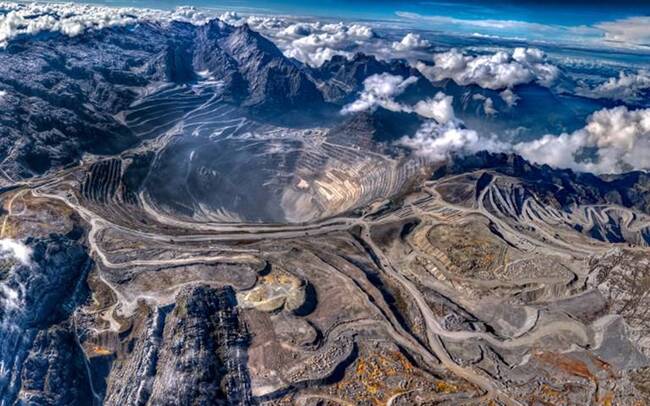

Grasberg open pit

On the subject of OK Tedi, a similar PNG-based copper-gold porphyry located only kilometers away, the following is worth noting…

  • The OK Tedi Mine is the longest-running open-pit copper, gold, and silver mine in PNG.
  • From the start of operations in 1984 to the end of 2018, Ok Tedi has produced 4.83 Mt of copper, 14.8 million ounces of gold, and 32.7 million ounces of silver.
  • According to MiningDataOnline, current OK Tedi resources stand at 747 MT grading .43% copper and .52 g/t gold.
  • Since 1984, the mine has contributed, on average, 7.4% of PNG’s annual Gross Domestic Product.

Getting back to Star Mountains

More than $50 million has been spent on the project since the initial discovery back in the early 1970s.

$30-plus million of that total was spent over the past six years, during a brutal bear market in all things metals and mining.

The Star Mountains acquisition was well-timed as it appears we have broken the downtrend and may be on the cusp of a bull cycle that could rival the run witnessed between 2001 and 2011.

The project and resource

The geology of the Star Mountains is characterised by generally shallow dipping Mesozoic and Cainozoic continental margin marine sediments, which have been forcefully intruded by middle Miocene to Pleistocene stocks, with coeval volcanism, and rest on a Palaeozoic metamorphics-granite basement exposed to the south. Deformation is principally expressed as large scale thrusting which was contemporaneous with intrusion of the calc-alkaline stocks and associated volcanism.”

The project has been subjected to extensive mapping, geochemical sampling, geophysics, and drilling.

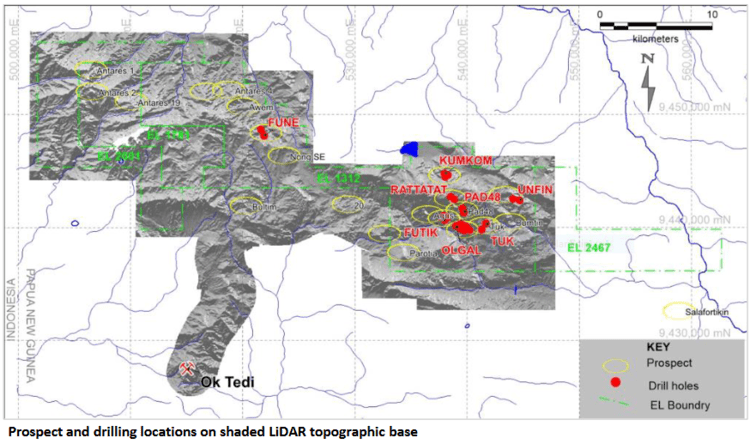

  • The above-noted fieldwork generated a total of 23 targets.
  • Seven of these targets were selected for detailed follow-up mapping, sampling, and AMT surveys.
  • Five of the seven prospects received a proper probe with the drill bit;
  • Olgal, Fune, Kum Kom, Unfin, Futik tagged significant copper mineralization (>0.2%Cu).

Additional work on these prospects included:

  • 200m spaced aeromagnetic & radiometric surveys over EL1312;
  • Ground IP & AMT surveys at Olgal and Kum Kom;
  • Ground AMT surveys at Unfin, Bumtin, Tuk, the Olgal-Futik corridor, and Fune.

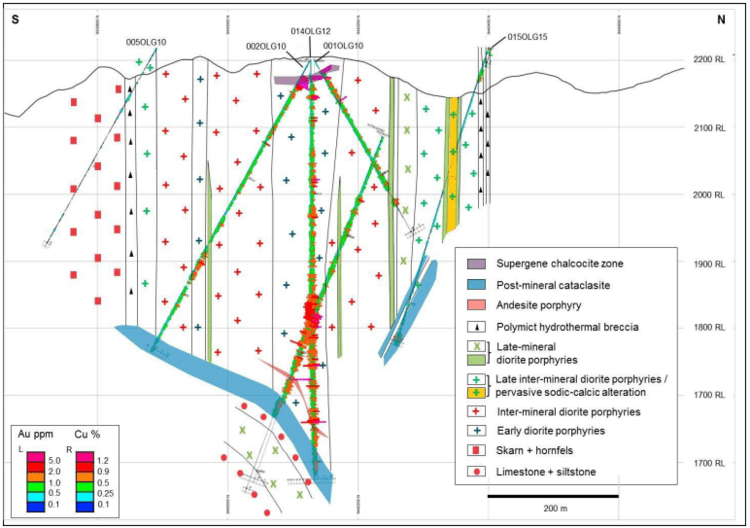

Of the five prospects drilled, the Olgal target produced some of the fattest intervals:

596 meters @ 0.61% Cu & 0.85 g/t Au from 24 meters downhole (Hole 14, 2012);

435 meters @ 0.52% Cu & 0.72 g/t Au from 76 meters downhole, including 100 meters @ 0.82% Cu & 1.39 g/t Au (Hole 17, 2016)

183 meters @ 0.53% Cu & 0.58 g/t Au from 168 meters downhole (Hole 19, 2016)

430 meters @ 0.39% Cu & 0.24 g/t Au from 168 meters downhole (Hole 20, 2016)

These fat hits helped lay the foundation for a maiden Olgal Inferred resource estimate of some 210 million tonnes grading 0.4% Cu and 0.4 g/t Au.

These numbers/values equate to 2.9 million ounces of gold and 840,000 tonnes (1.9 billion lbs) of copper.

Using current metals prices, this resource is equivalent to 5.9 million ounces of gold OR 3.7 billion lbs of copper.

This resource estimate is based on 23 diamond drill holes (8,949 meters drilled) with a nominal spacing of 200 meters between holes.

I know what you’re thinking, “How many meters of additional drilling will be required to increase the confidence in this resource, elevating it to the Measured and Indicated categories?” Great question!

According to Freeport’s technical team, it will likely require an additional 23 holesanother 9,000 meters of drillingto satisfy the spatial requirements for a push into these higher confidence (Indicated and/or Measured) categories.

What kind of costs are we looking at for a 9k meter drilling campaign?” Another great question!

Based on this team’s experience operating in PNG, the drilling-only costs for a helicopter supported 2-rig program will ring in at roughly AUD$200 per meter, excluding all support, facilities, and personnel costs.

This will work out to approx US$1.35 million for a 9k meter, 23 hole campaign (plus support, facility, and personnel costs).

Fair enough…

The resource expansion and exploration upside

Being a Cu-Au porphyry, within 501 square kilometers of largely untested PNG Orogenic Belt, the resource expansion and exploration upside at Star Mountains has to be considered very good.

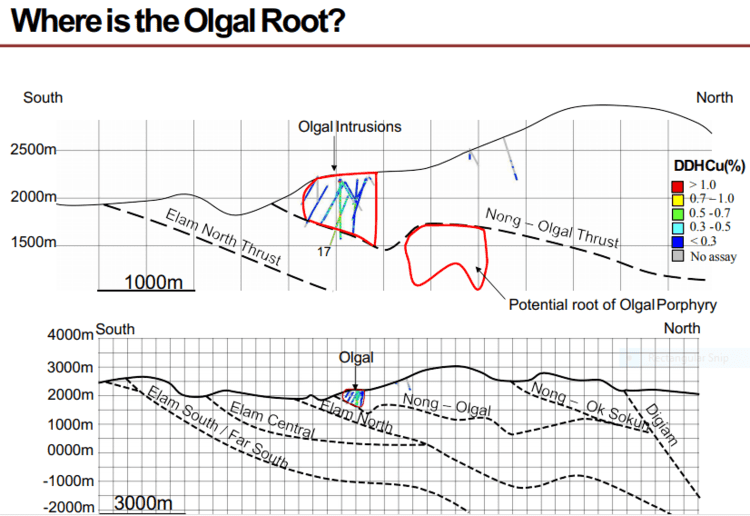

The mineralization at Olgal is open to the west where the real guts of the system may lie…

Beyond the borders of the Olgal prospect, of the multiple targets representing potential exploration upside, Kum Kum and Fune stand as two of Freeport’s more advanced targets.

Kum Kum is a skarn prospect

Drilling back in 2013 tagged the following intercepts:

22 meters grading 1.42% Cu & 0.57 g/t Au from 146 meters downhole;
68 meters grading 0.97% Cu & 0.37 g/t Au from 280 meters downhole.

Fune is also a skarn prospect

A 2017 drilling campaign at Fune tagged the following values:

• 47 meters grading 0.33% Cu & 0.09 g/t Au from surface;

• 26.8 meters grading 0.97% Cu & 0.34 g/t Au from 136 meters;

• 24.9 meters grading 0.59% Cu & 0.17 g/t Au from 258 meters.

The Company could probably spend years, if not decades, probing Star Mountains subsurface layers, and still not realize its ultimate potential.

Regarding metallurgyan all too important consideration with any potential development project the best reference we have is the OK Tedi mine. OK Tedi is currently in operation using gravity separation and flotation. Recoveries, based on recent reports, are approximately 86% for copper and 59% for gold.

The lay

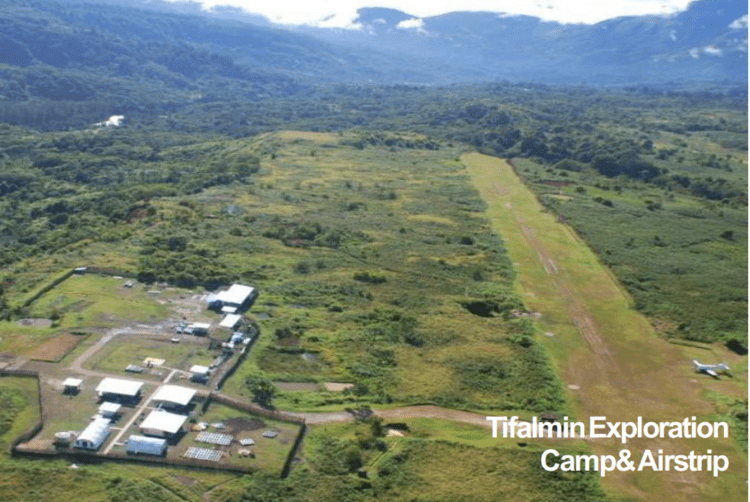

Though surrounded by dense jungle, the project enjoys close proximity to a 30 person exploration camp and airstrip.

Services at nearby Tilfalmin include a police station, hospital, https://e4njohordzs.exactdn.com/wp-content/uploads/2021/10/tnw8sVO3j-2.pngistrative offices, and a number of schools and learning facilities.

The mining community of Tabubil is located roughly 30 kilometers away. Tabubil is a well-serviced town with all of the modern conveniences one might want.

Though the Star Mountains project area is sparsely populated, with people living mostly in small villages, the Company enjoys excellent relations with these local communities.

Since 2010, the push to explore the region has been a major source of employment for many of the villagers living nearby.

At the helm

Looking a Freeport management, it’s an experienced crew with an advisory board consisting of several key names with extensive experience in PNG. This is what I was hoping to find when I first looked at the Companya couple of key in-country hires.

Two examples:

Libas Ulaiwi

Libas Ulaiwi has over 25 years of work experience in the Mining Industry. I am currently doing geological consultancy work for Highlands Pacific and recently Anglo American as an Independent Consultant. Up until November 2017, Libas was working as the Principal Project Geologist, managing and supervising the site operations of the Highlands Pacific Limited–Anglo American Star Mountains Project in Papua New Guinea. Prior to this appointment Libas was a senior geologist with Ord River Resources, based in Sydney and managing exploration work on copper projects in Western Australia and gold projects in Northern Territory and New South Wales. Libas graduated with a Bachelor of Science Degree, majoring in Geology at University of PNG in 1994 and completed Masters of Economic Geology at University of Tasmania.

Ron Gawi

Ron Gawi spent 33 years as a public servant commencing in 1978 as a Technical Officer at the Geological Survey of Papua New Guinea. He was then a Project Coordinator and then followed that appointment with senior management roles first in the Department of Mining and Petroleum and then in the Mineral Resources Authority. During this time, Ron also studied and obtained a Certificate in Earth Sciences at the University of the South Pacific, Fiji in 1989. In 2011 Ron left the Government and joined the private sector with Highlands Pacific Limited, which is a diversified mineral resources company registered in PNG and, at the time, was listed dually on the Port Moresby Stock Exchange and Australian Stock Exchange. Ron is currently a full Council Member of the Chamber of Mines and Petroleum and advises several companies in the PNG mining industry on a consultancy basis.

Newsflow

The last headline the Company put out announced the completion of the Star Mountains acquisition deal.

October 19th news: Freeport Completes Acquisition of Star Mountains Gold Project

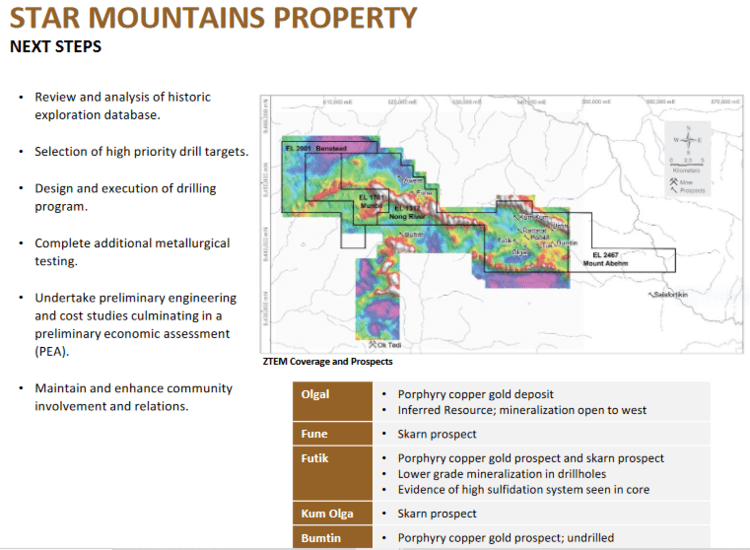

Freeport’s technical team is currently busy analyzing the historic data from Star Mountains.

This project, particularly the Olgal prospect hosting the current 5.9M AuEq resource, is primed for a proper poke with the drill bit. The mobilization of a drill rig to Star Mountains, perhaps as early as Q1 of 2021, should mark the beginning of a substantial period of newsflow.

We stand to watch.

END

Greg Nolan

Full disclosure: Freeport is an Equity Guru marketing client.
